Pointe Precision Milling

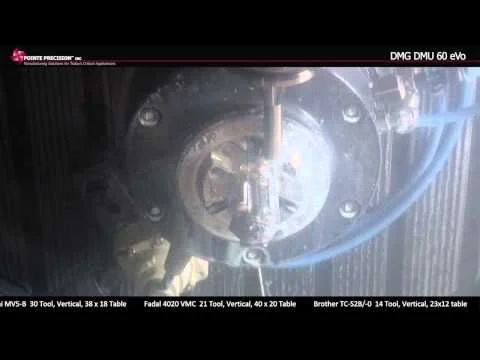

CNC Milling Centers

(36) Makino a51nx60 Tool, Horizontal, 400mm x 400mm, 2 Pallet

(1) Mori-Seiki NH5000 – DCG60 Tool, Horizontal, 500mm x 500mm, 2 Pallet

Mori-Seiki NH5000 – DCG120 Tool, Horizontal, 500mm x 500mm, 2 Pallet

Mori-Seiki SV-500-4040 Tool, Vertical, 30 x 21 Table, 2 Pallets

Hermle C22 5-Axis55 Tool, 450mm x 600mm x 330mm

Makino PS9530 Tool, Vertical, 36 x 20 Table

Makino a61nx218 Tool, Horizontal, 500mm x 500mm, 2 Pallet

Pointe Precision Turning

CNC Turning Centers

(2) Okuma Multus U3000 25W/1500 Big Bore Lathes

Bumotec S191 Linear - High Precision CNC Mill-Turn (July 2017)

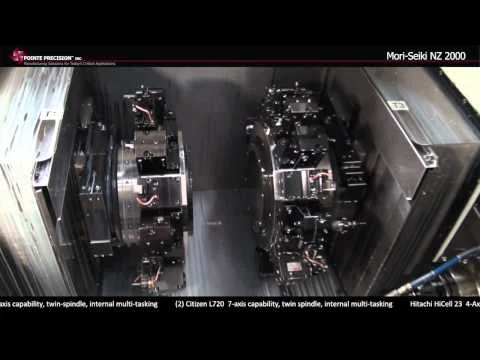

(3) Mori-Seiki NZ 2000T3Y3 triple turret multi-tasking turning center

Mori-Seiki NZ 2000T2Y Twin Turret multi-tasking turning center

Mori-Seiki NL2500SY/125012 Station, sub spindle with Y-axis control

(6) Mori-Seiki NLX2500SY/70012 Station, sub spindle with Y-axis control

Mori-Seiki SL15412 Station, sub spindle with Y-axis control

Mori-Seiki NL 3000Y/125010 Station, 15″ Chucking capacity w/ steady rest

(2) Citizen L7207-axis capability, twin spindle, internal multi-tasking

(5) Citizen L20-X Twin Spindle, internal multi-tasking

Citizen M43210 Station, Turret, Twin Spindle

Pointe Precision Grinders

Studer S31 Lean

  • Universal 3 in 1 CNC Grinder (I.D., O.D., and Side)
  • OD Grind (max) 9″ Round x 24″ Long
  • ID Grind (max) 3″ Round x 6″ Long
  • Ground External Diameters +/-.0001 (50 millionths roundness)
  • Ground Internal Diameters +/- .0001 (50 millionths roundness/straightness)
  • Ground Shoulders +/- .0001

Studer S33 Cylindrical Grinding Machine

  • Dual OD Grinding Wheel Heads and Single ID Grinding Spindle
  • Glass Scales with .000004"
  • Granitan Machine Base with Vibration Reducing Mounting Parts

Studer S33 Grinder

  • Universal Cylindrical Grinding Machine
  • 31.5″ Distance Between Centers
  • Resolution: 0.000004″
  • Concentricity: 0.000016″
  • Equipped with P7ME Marposs In Process Gauging System

Remanufactured Model #20M Cincinnati CNC Centerless Grinder

  • 100% Replaced or Restored to Original Manufactures
    Specifications or Better
  • Frelon Coated Hand Scraped Slide Ways
  • 0 to 3″ Diameter Capable
  • Thru Feed Capable

Chevalier Surface Grinder

  • Smart B1224II Surface/Creep Grinder
  • Surface Grinding +/- .0001
  • 12″ X 18″ Work Table

(2) Voumard CNC 130

  • 3 Spindle High Precision ID Grinder
  • Ground Internal Diameters +/- .0001 (>50 millionths roundness/straightness)
  • Match Grind to .000050 to .0001
  • Scale resolution of 0.000004″

Sunnen Stroker Hone – ML 2000

  • .060″ to 6.500″ Diameters
  • ⅛ to 16″ lengths
  • 3 additional Sunnen Manual Hones

Ex-Cell-O EXL – Thread Grinder

  • Thread Grind (max) 6″ Round x 6″ Long

Additional Equipment

  • Cincinnati Size-Matic - ID Grinder
  • Myford MG12-HPM - Groove, Side, Collet and OD
  • (2) Cincinnati M2H1W-455 - End-Feed Centerless OD
  • Model 3A Mini-Broach – 10 ton with 38″ pull

Pointe Precision NADCAP Accredited
Non-Conventional Machining (EDM)

Makino EDBV3 CNC EDM Machine

  • Travel X 14.5″, Y 10.6″, Z 19.6″
  • 1000 RPM Rotating Spindle
  • 2 Axis Integrated 360° Rotary Table
  • 24 Station Tool Change

Mitsubishi MV2400R Wire EDM

  • Travel 23.6″ x 15.7″ x 12.2″, Work piece 41.3″ x 32.3″ x 12.0″
  • Intelligent Auto Threader

Mitsubishi FA20S Submerged Wire EDM

  • Travel X-Y 19.7″ x 13.8″, Work piece 41.3″ x 31.5″ x 11.7″
  • Highly Reliable High-Speed Threading
  • Average Dimensional Variance .0001″
  • Surface Finish 6-8 Ra
  • Machining Range from .250″-6.0″

Mitsubishi EA8PV Advance FP80V

  • Travel 11.8″ x 9.8″ x 9.8″, Work piece 29.1″ x 18.5″ x 5.7″
  • 20 Position 3R Combination Tool Changer
  • Five Hole Option C-Axis

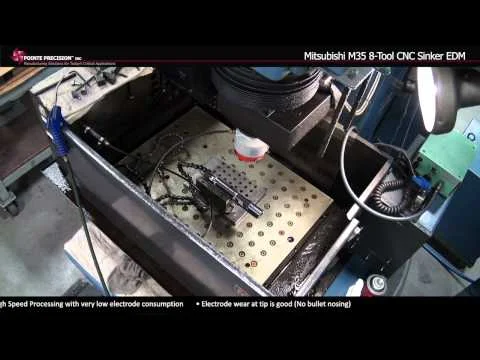

Mitsubishi M35 8-Tool CNC Sinker EDM

  • Travel X/Y/Z 13.78″ X 9.84″ X 9.84″, Table size 27.56″ x 19.69″
  • 8 Position Electrode Changer
  • System 3R C-Axis Head
  • Precision deep hole electrode drilling

Mitsubishi ED-2000M Manual EDM Drill (Holepopper)

  • Work Table 15.7″ x 11.8″
  • High Speed Processing with very low electrode consumption
  • Electrode wear at tip is good (No bullet nosing)

Pointe Precision Inspection Capabilities

Pointe Precision has over 15,000 pieces of inspection equipment, including over 5,000 plug gages ranging in size from .010 to 4.000 and in increments from .0001 in smaller gages to .001 in larger gages. All are calibrated in our state-of-the-art, climate-controlled metrology lab using NIST traceable equipment. Our inspection equipment also includes:

  • (1) NITON XLt Material Alloy Analyzer
  • (3) Servo-driven Coordinate Measuring Machines
  • (1) Premiere Optical Profile Inspection System
  • (2) Micro-Vu Sol 312 Vision Measurment Systems
  • (1) Magnetic Particle Inspection Unit
  • (1) Mahr MMQ400, Servo Driven Roundness Checker, with pneumatic vibrations dampening table

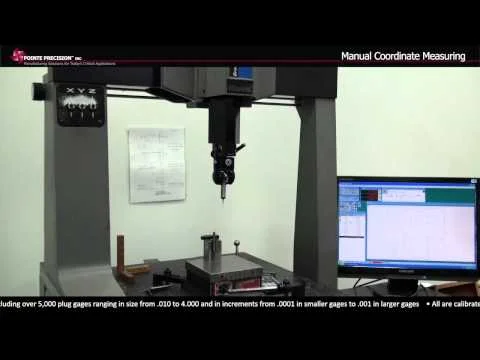

  • (2) Manual Coordinate Measuring Machines
  • (2) Optical Comparators
  • (1) Roundness Checker
  • (2) Electronic Pocket Surface Finish Checkers
  • (1) Fluorescent Penetrant Inspection Unit
  • (1) JenOptik Vision System
  • (3) Marposs M39S Match Grinding Gauges
  • (1) Hommel-Etamic Match Grinding Gauges
  • Trimos Labconcept Calibration Gage

Pointe Precision Special Processes

Nondestructive Testing

  • Magnetic Particle Inspection
  • Fluorescent Penetrant Inspection

Micro Deburring

  • Clean Room with Isolated Buffing Room
  • Tumbling
  • Electro Chemical Deburring System

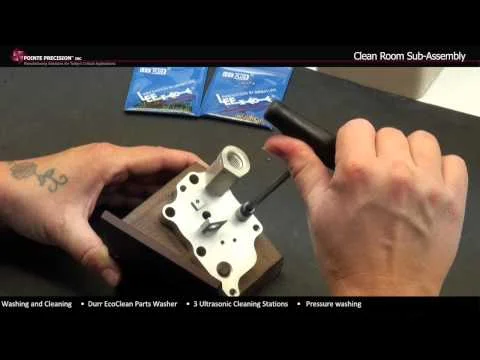

Clean Room Sub-Assembly

  • S.T.I.
  • Lee Plugs
  • Pins and Components
  • Heat and Freeze Bushings
  • Soldering

NADCAP Accredited Heat Treating and Brazing

  • Abar-Ibsen HR - 26 x 36 Vacuum Furnace with diffusion pump
  • Ipsen-Titan H402113 Vacuum Furnace with diffusion pump
  • Deep Freeze Unit
  • Blue-M Draw Furnaces (2)
  • Gold-Nickel Furnace Brazing

Part Washing and Cleaning

  • RAMCO Parts Washer
  • 3 Ultrasonic Cleaning Stations
  • Pressure washing

Laser Marking

  • (2) Mobile Laser Markers Systems

3D PrinterS

  • MakerBot Z18 Printer - PLA Filament
  • Fortus 450MC - FDM Nylon 12, PC-ISO & AMB-M30i, and ULTEM 9085 & 1010 - Build Envelope = 16" x 14" x 16"

Production Support Resources

  • Gibbs & Espirit – CAM Software
  • SolidWorks – Engineering Software – 3D Assemblies/Drawings
  • Epicor/Avante ERP
  • Epicor Advance Quality Powered by IQS, Quality Management Software

Tolerances

  • Turned Diameters +/- .0002
  • Turned Lengths +/- .0004
  • Ground External Diameters .0001 (50 millionths roundness)
  • Ground Internal Diameters +/- .0001 (50 millionths roundess/straightness)
  • Match Grind to .000050 to .0001
  • Ground Shoulders +/- .0001
  • Surface Grinding +/- .0001
  • Turned Diameters to 14″
  • OD Grind (max) 9″ Round x 24″ Long
  • ID Grind (max) 3″ Round x 6″ Long
  • Thread Grind (max) 6″ Round x 6″ Long
  • Milling (max) 30″ x 40″ x 25″ (Vertical)
  • Milling (max) 28″ x 28″ x 29″ (Horizontal)
